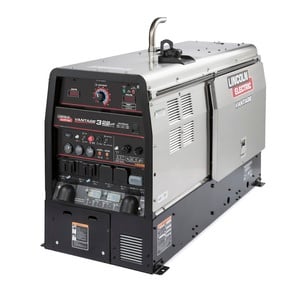

Features and BenefitsDocumentsSpecificationsFeatures and Benefits Lincoln Vantage® 322 (Kubota®) Engine Driven Welder K2409-5: Compact Multi-Process Welder Discover the power of versatility with the Vantage® 322, a compact multi-process welder that delivers excellent value. Ideal for construction teams, pipe rig owners, and rental fleet managers, this welder is designed to meet the demands of various applications. Explore the key features, performance capabilities, and why the Vantage® 322 stands out in the welding landscape. Key Features: 1. Compact Design: Small size and light weight, suitable for pickup trucks Stainless steel panels for added durability and protection Lockable sliding engine access door for easy maintenance 2. Multi-Process Welding: Choose from five welding process modes: Stick, TIG, MIG, Flux-Cored, Gouging Separate Arc Gouge Mode for maximum output with up to 1/4 in. (6.3 mm) carbon rods Digital weld meters for precise control 3. AC Generator Power: 12.5 kW peak (11 kW continuous) 3-Phase 240V AC generator power 11.5 kW peak (10 kW continuous) 1-Phase AC generator power Powers industrial equipment and common construction tools 4. Industrial Diesel Engine: Tier 4 Final Kubota® diesel engine for smooth and quiet operation 20-gallon (76 liter) fuel tank for extended running time Innovative service access for easy maintenance 5. Arc Performance: 300 amps @ 100% duty cycle with an output range up to 400 amps VRD™ (Voltage Reduction Device) for added safety in CC-stick welding mode Chopper Technology for superior DC arc welding performance Performance Excellence: Built-in “hot” start for easier starts and restrikes Downhill pipe mode with arc force control for enhanced pipe welding DC Touch Start TIG welding for easy arc starting without tungsten contamination Excellent CV wire welding with cored-wire and MIG for various applications Generator Power for Simultaneous Welding and Tools: Simultaneously weld and use 3-phase AC power Two 120V GFCI modules for added safety Constant AC generator voltage at 120V or 240V Controls and Convenience: Simple controls for minimal training time Digital meters for precise setting of procedures Large 20-gallon fuel tank for extended run time Self-bleeding engine simplifies startup after fuel tank runs dry Quality and Reliability: Engine protection system with automatic shutdown for low oil pressure or high engine temperature Closed breather system for an environmentally friendly engine All-copper windings for dependability and long life Stainless steel panels for added protection, durability, and corrosion resistance Order Your Vantage® 322 Today: Experience the compact design, multi-process capabilities, and reliable performance of the Vantage® 322. Backed by Lincoln Electric’s reputation for quality, this welder is your go-to choice for a wide range of welding applications. Elevate your welding experience – order the Vantage® 322 now! Documents Vantage 322 Product Info Specifications RATED OUTPUT 300A/32V/100% IEC 400A/23V/100% Max OUTPUT RANGE 30-400A DC 40-300A Pipe 20-250A DC TIG 14-32V CV 90-300A Gouge GENERATOR OUTPUT 3-PH: 12.5 kW peak, 11.0 kW cont. 1-PH: 11.5 kW peak, 10.0 kW cont. TYPE OF ENGINE Kubota V1505 EPA Tier 4 HP AND SPEED 22@1800 CYLINDERS 4 DIMENSIONS (H X W X D) 35.9 in x 25.3 in x 60 in (913 mm x 642 mm x 1524 mm) NET WEIGHT 1035.00 (469.48 kg) SKU: K2409-5 Categories: Brands, Engine Driven Welder Generator, Equipment, Lincoln Electric Tags: lincoln vantage, vantage, welder generator Brand: Lincoln Electric
